Steel Structure

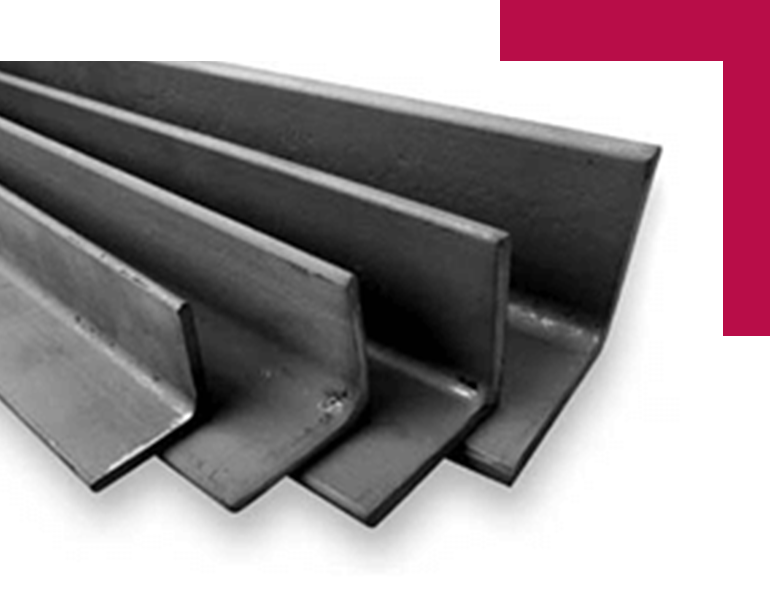

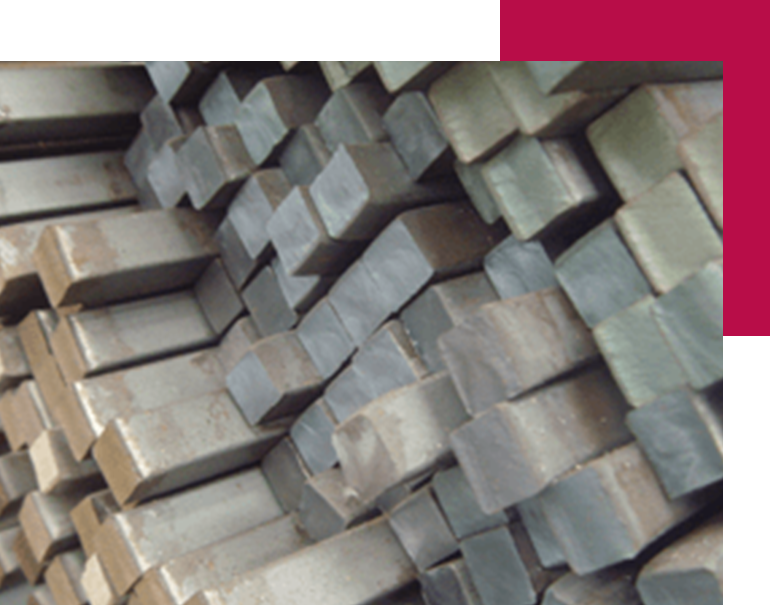

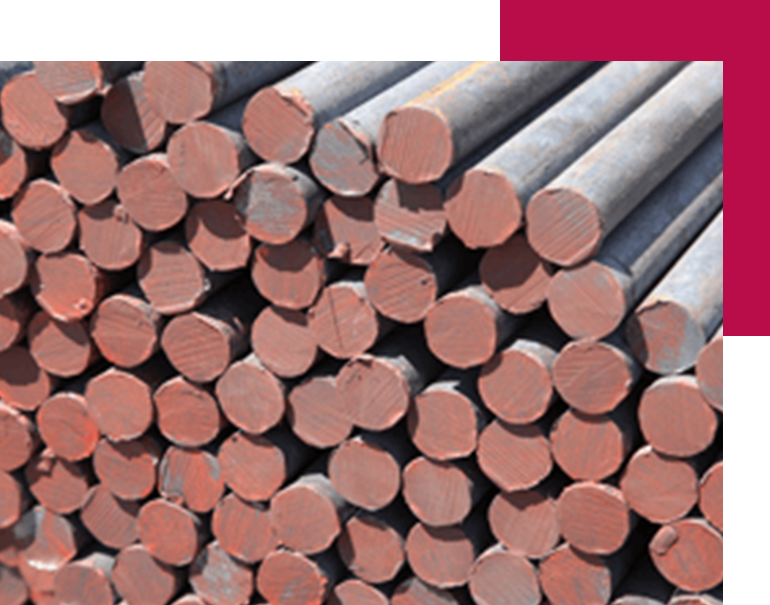

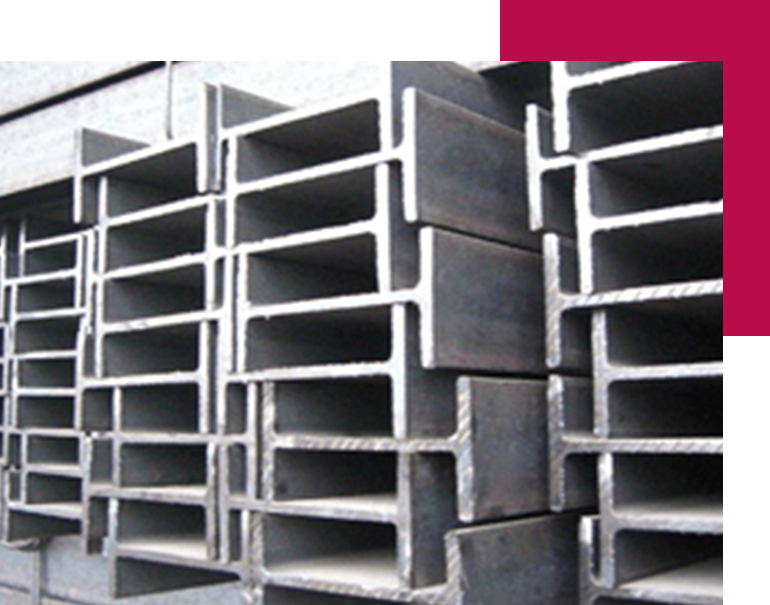

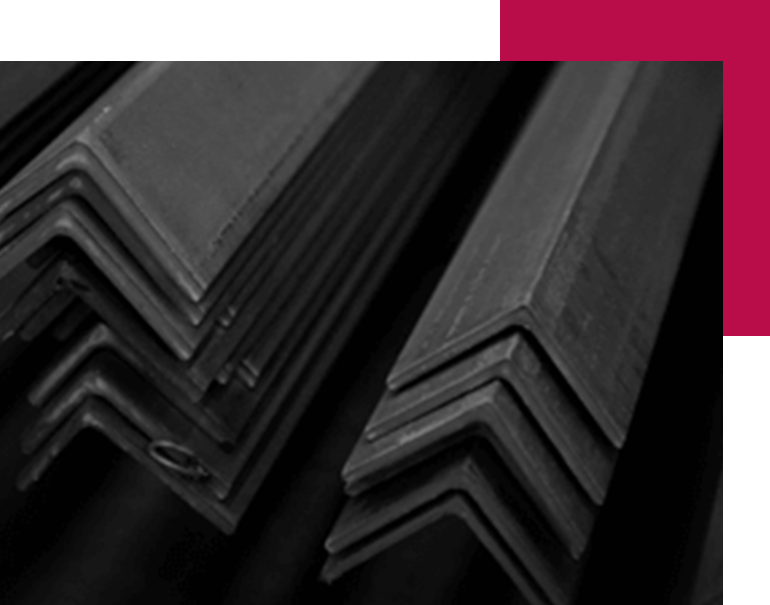

Our group companies, Hans Industries Private Ltd and Aggarwal & Company manufacture wide range of customer-specific steel products, strictly confining to the BIS standards. These products include various special sections such as mild steel H-beams, I-beams, Flats, U- channels, C-channels, Equal angles, unequal angles, square bars and round bars.
The Group has Induction Furnace, Con-cast Machine & Automatic Re-rolling Mills with capacity varying from 8 to 18 inches with annual capacity of manufacturing Steel structures of more than 1Lac Tons. This, combined with a consistent source of raw material, efficient production process, stringent quality controls, well-located transportation facilities and proximity to domestic and international markets, makes the Group maintain a Strong and Competitive position in the market.
| Sr No | Angles (mm) | M.S.FLAT Bars (mm) | M.S. Rounds | M.S. Squares | M.S.Channels | I Beam | H Beam |
|---|---|---|---|---|---|---|---|
| 1 | 25 x 25 x 3/5 | 20 x 3/4/5/6 | 10 mm | 9 mm | 75 x 40 mm | 125 x 65 | 116 x 100 |
| 2 | 30 x 30 x 3 | 30 x 3/4/5/6 | 11 mm | 10 mm | 100 x 50 mm | 125 x 70 | 150 x 150 |
| 3 | 35 x 35 x 3/5 | 40 x 3/4/5/6/8/10/12/16 | 12 mm | 11 mm | 125 x 65 mm | 150 x 75 | 152 x 152 |
| 4 | 40 x 40 x 5/6 | 50 x 3/4/5/6/8/10/12/16/20/25 | 14 mm | 12 mm | 150 x 75 mm | 200 x 100 | |
| 5 | 50 x 50 x 5/6 | 63 x 5/6/7/10/12/16/20/25 | 16 mm | 14 mm | 200 x 75 mm | 250 x 125 | |
| 6 | 65 x 65 x 5/6/8 | 75 x 5/6/7/10/12/16/20/25 | 18 mm | 16 mm | 250 x 80 mm | 300 x 140 | |
| 7 | 75 x 75 x 5/6/8 | 100 x 6/8/9/10/11/12/16/20/25 | 20 mm | 18 mm | |||
| 8 | 90 x 90 x 6/8/10 | 125 x 6/8/10/12/16/20/25 | 22 mm | 20 mm | |||
| 9 | 100 x 100 x 8/10/12 | 150 x 68/10/12/16/20/25 | 25 mm | 22 mm | |||
| 10 | 110 x 110 x 8/10/12 | 200 x 8/10/12/16/20/25 | 60 mm / 63 mm | 25 mm | |||
| 11 | 130 x 130 x 8/10/12 | 65 mm / 70 mm | |||||
| 12 | 150 x 150 x 10/12/16 | 75 mm / 80 mm | |||||
| 13 | 90 mm / 10 mm |
